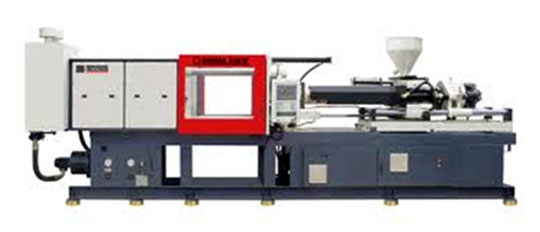

Injection Molding Equipment

  • Home
  • Injection Molding Equipment
Sl.No. DESCRIPTION JSW 70T SM90 SM120T T100T T125T T150 T150 T200 FM200 FM200 EN 350T SM450 SM 650T DM 650T
1 Injection capacity Max. 50 gm 122Gm 188Gm 210Gm 210Gm 326Gm 326Gm 326Gm 272Gm 272Gm 750 Gm 1057Gm 2550 Gm 2268 Gm
2 Clamping force 70T 90T 120T 100T 125T 150T 150T 200T 200T 200T 350T 450T 650T 650T
3 Max.Day light 500mm 475mm 500mm 550mm 550mm 600mm 600mm 600mm 660mm 660mm 1200 mm 1360mm 1680 mm 1765 mm
4 Min. Mould Height 200mm 125mm 150mm 200mm 200mm 200mm 200mm 200mm 150mm 150mm 350 mm 260mm 300 mm 305 mm
5 Max. Mould Height 300mm 350mm 450mm 530mm 530mm 550mm 550mm 550mm 510mm 510mm 1000 mm 720mm 900 mm 902 mm
6 Platen Size 400*400mm 530*530mm 610*610mm 600*600mm 600*600mm 720*720mm 720*720mm 720*720mm 740*740mm 740*740mm 1050*900 mm 1035*1035mm 1300*1300 mm 1346*1346 mm
7 Distance between Tie Rods 380*380mm 360*360mm 425*425mm 420*420mm 420*420mm 500*500mm 500*500mm 500*500mm 510*510mm 510*510mm – 700*700mm 880*880 mm 914*914
8 Ejection Stroke 110mm 100mm 100mm 120mm 120mm 156mm 156mm 156mm 130mm 130mm 200 mm 160mm 220mm 200 mm
9 Electric Motor 15 HP 15HP 15HP 22HP 22HP 22HP 22HP 22HP 17.5HP 17.5HP 60 HP 50HP 100 HP 100 HP
10 Locating Ring 100mm 100mm 100mm 125mm 125mm 125mm 125mm 125mm 125mm 125mm 160 mm 160mm 160 mm 100 mm
